Screen

The screen is a powerful output device, it is capable of rendering text, colours and complex graphics.

The screen size is:

160x128

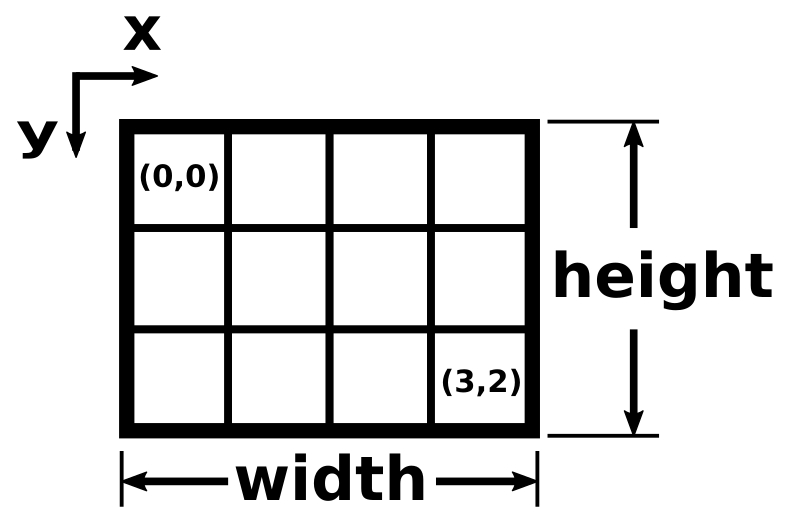

The screen is organised with the top left hand side being the origin point of (0,0).

The width is 160 pixels, the height at 128 pixels.

The following code will write a word on the screen.

import board
import terminalio
import displayio
from adafruit_display_text import label

display = board.DISPLAY

# Set text, font, and color
text = "HELLO WORLD"
font = terminalio.FONT
color = 0x0000FF

# Create the text label
text_area = label.Label(font, text=text, color=color)

# Set the location
text_area.x = 50
text_area.y = 80

group = displayio.Group()
group.append(text_area)

# Show it
display.root_group = group

# Loop forever so you can enjoy your image
while True:
    pass

The following code will show a Bitmap.

First Download the BMP file and place in on your CIRCUITPY drive

76KB



Open

import board
import time
import displayio

display = board.DISPLAY

bitmap = displayio.OnDiskBitmap("/purple.bmp")

# Create a TileGrid to hold the bitmap
tile_grid = displayio.TileGrid(bitmap, pixel_shader=bitmap.pixel_shader)

# Create a Group to hold the TileGrid
group = displayio.Group()

# Add the TileGrid to the Group
group.append(tile_grid)

# Add the Group to the Display
display.root_group = group


# Loop forever so you can enjoy your image
while True:
    pass

The code that sets the color_palette uses the value 0x00FF00 - where each two values represent the red, green and blue colours.

There are a large number of examples that can be used with your display, have a look at the following article (ignore the ePaper references).

Bouncing Text

import board
import time
import terminalio
from adafruit_display_text import label
import random
import displayio

display = board.DISPLAY

# Set text, font, and color
text = "StudioBot"
font = terminalio.FONT
color = 0x0000FF # Blue

# Create the text label
text_area = label.Label(font, text=text, color=color)

x = 50
y = 80

x_direction = 1
y_direction = 1

# Set the location
text_area.x = x
text_area.y = y

group = displayio.Group()
group.append(text_area)

# Show it

display.root_group = group


# Loop forever so you can enjoy your image
while True:
    x = x + 1 * x_direction
    y = y + 1 * y_direction

    if x >= 150:
        x_direction = -1
        text_area.color = random.randint(0, 0xFFFFFF)
    elif x <= 0:
        x_direction = 1
        text_area.color = random.randint(0, 0xFFFFFF)

    if y >= 120:
        y_direction = -1
        text_area.color = random.randint(0, 0xFFFFFF)
    elif y <= 0:
        y_direction = 1
        text_area.color = random.randint(0, 0xFFFFFF)

    text_area.x = x
    text_area.y = y

    time.sleep(0.01)
